esp8266

Table des matières

Installation sur Arduino
Informations générales sur les modules ESP8266
- Utilisation comme modem WIFI depuis un PC
- Scripts python
Application carte pour automatisme porte de garage
télécommande voiture pour marc
Carte marc Arduino D1 Mini
- Problème suite à upload

Installation sur Arduino

Lancer Arduino, puis dans Fichier→Preferences→Url pour cartes: copier coller:

https://arduino.esp8266.com/stable/package_esp8266com_index.json

puis dans Outils→Type de cartes→Gestionnaire de cartes taper dans la zone de recherche:

esp8266

puis selectionner la version la plus récente et installer

puis dans Outils→Type de cartes→ choisir NodeMCU 1.0

Informations générales sur les modules ESP8266

documentation du composant: https://www.espressif.com/sites/default/files/documentation/esp8266-technical_reference_en.pdf

https://cdn-shop.adafruit.com/product-files/2471/0A-ESP8266__Datasheet__EN_v4.3.pdf

https://nurdspace.nl/ESP8266

Utilisation comme modem WIFI depuis un PC

Utilisation d'un point d'accès WIFI avec serveur DHCP. L'adresse IP 192.168.1.65 est attribuée au module ESP et l'adresse IP 192.168.1.64 est attribuée à l'interface WIFI du PC.

Lancer un terminal pour dialoguer avec le module ESP via un adaptateur USB-Série:

miniterm.py /dev/ttyUSB0 115200

Les commandes affichées en doivent être saisie dans un second terminal .

Pour redémarrer le module:

AT+RST

Pour obtenir la version du firmware:

AT+GMR

Pour obtenir le mode: (1= Station, 2= Access Point, 3=both)

AT+CWMODE?
  +CWMODE:2

Pour lister les points d'accès à portée, il faut que le module soit en mode Station:

AT+CWMODE=1
AT+CWLAP
  +CWLAP:(0,"78BF39",-36,"00:26:44:05:62:e7",1,-36)
  +CWLAP:(3,"ESPap",-81,"1a:fe:34:9b:ce:c9",11,-161)

Pour passer en mode client du point d'accès thomson “78BF39”:

AT+CWMODE=1
AT+CWJAP="78BF39","6D842DAE4B"
  WIFI CONNECTED
  WIFI GOT IP

Pour vérifier les paramètres du Access Point auquel le module est connecté:

AT+CWJAP?
  +CWJAP:"78BF39","00:26:44:05:62:e7",1,-43

Pour obtenir les adresses IP et MAC du module:

AT+CIFSR
  +CIFSR:STAIP,"192.168.1.65"
  +CIFSR:STAMAC,"18:fe:34:e5:f4:a7"

Tester si la carte répond au ping

ping 192.168.1.65

Pour pinger depuis le module ESP

AT+PING="192.168.1.64"

Pour déterminer le status (2 The ESP8266 Station is connected to an AP and its IP is obtained. 3 The ESP8266 Station has created a TCP or UDP transmission. 4 The TCP or UDP transmission of ESP8266 Station is disconnected. 5 The ESP8266 Station does NOT connect to an AP. )

AT+CIPSTATUS
  STATUS:4

Pour déterminer le nombre de connexions: single connection (AT+CIPMUX=0), multiple (AT+CIPMUX=1), le module supporte jusqu'à 4 connexions

AT+CIPMUX?
  +CIPMUX:0

Pour déterminer comment sont récupérées les données reçues: (0 - data received will be send to serial port with +IPD,<connection channel>,<length> format. (AT+CIPMUX=[0,1] )

AT+CIPMODE?
  +CIPMODE:0

Pour passer en mode transparent (les caractères envoyés au module via UART ne sont pas interprétés comme des commandes AT mais comme des données)

AT+CIPMODE=1

Pour ouvrir une socket UDP (ou TCP):

AT+CIPSTART=?
AT+CIPSTART="UDP","192.168.1.64",10000,10000

Lancer le script udp-client-emit.py pour que le module recoive un message

./udp-client-emit.py

Le terminal du module ESP doit afficher

  +IPD,20,192.168.1.64,57449:This is the message.

Pour que lors de la réception, le module n'inclue pas IP et Port distant:

AT+CIPDINFO=0
  +IPD,20:This is the message.

Pour que lors de la réception, le module inclue IP et Port distant:

AT+CIPDINFO=1
  +IPD,20,192.168.1.64,57449:This is the message.

Lancer le script udp-client-rec.py pour recevoir les données émises par le module.

./udp-client-emit.py

Pour envoyer un message de 10 octets:

AT+CIPSEND=10
> 123456abcd
  +IPD,18:echoed: 123456abcd
  OK

Le message doit s'afficher dans la fenêtre de udp-client-rec.py

  received "b'123456abcd'"

Pour fermer la socket:

AT+CIPCLOSE

Lancer le script ./qt_esp8266.py pour dialoguer avec le module via une interface graphique. Cliquer sur les boutons Led, le module doit afficher les datagrammes correspondants. Pour que le module envoie un datagramme à l'application graphique.

AT+CIPSEND=35
> compteur= 123456 b1:0  b2:1  b3:0
AT+CIPSEND=35
> compteur= 123456 b1:0  b2:0  b3:0

TODO

Configuration passerelle et masque de sous réseau

AT+CIPSTA_DEF="192.168.6.100","192.168.6.1","255.255.255.0"

Scripts python

udp-client-emit.py

#!/usr/bin/python3
#Bertrand Vandeportaele 2019
#https://pymotw.com/2/socket/udp.html
import socket
import sys
# Create a UDP socket
sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
#server_address = ('localhost', 10000)
#esp8266 via AP thomson
server_address = ('192.168.1.65', 10000)
message = 'This is the message.'
try:
    # Send data
    print ('sending "%s"' % message)
    sent = sock.sendto(message.encode(), server_address)
finally:
    print ( 'closing socket')
    sock.close()

udp-client-rec.py

#!/usr/bin/python3
#Bertrand Vandeportaele 2019
#https://pymotw.com/2/socket/udp.html
import socket
import sys
import fcntl,errno,os
# Create a UDP socket
sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
#server_address = ('localhost', 10000)
#premier champ vide pour recevoir depuis n'importe quelle adresse,sinon IP en chaine de caractères
server_address = ('', 10000)

sock.bind(server_address)
#fcntl.fcntl(sock, fcntl.F_SETFL, os.O_NONBLOCK) #rend les appels non bloquants
print('Press CTRL+C to quit')
try:
  while(True):
    # Receive response
    print('waiting to receive')
    data, server = sock.recvfrom(4096)
    print ( 'received "%s"' % data)
finally:
    print ( 'closing socket')
    sock.close()

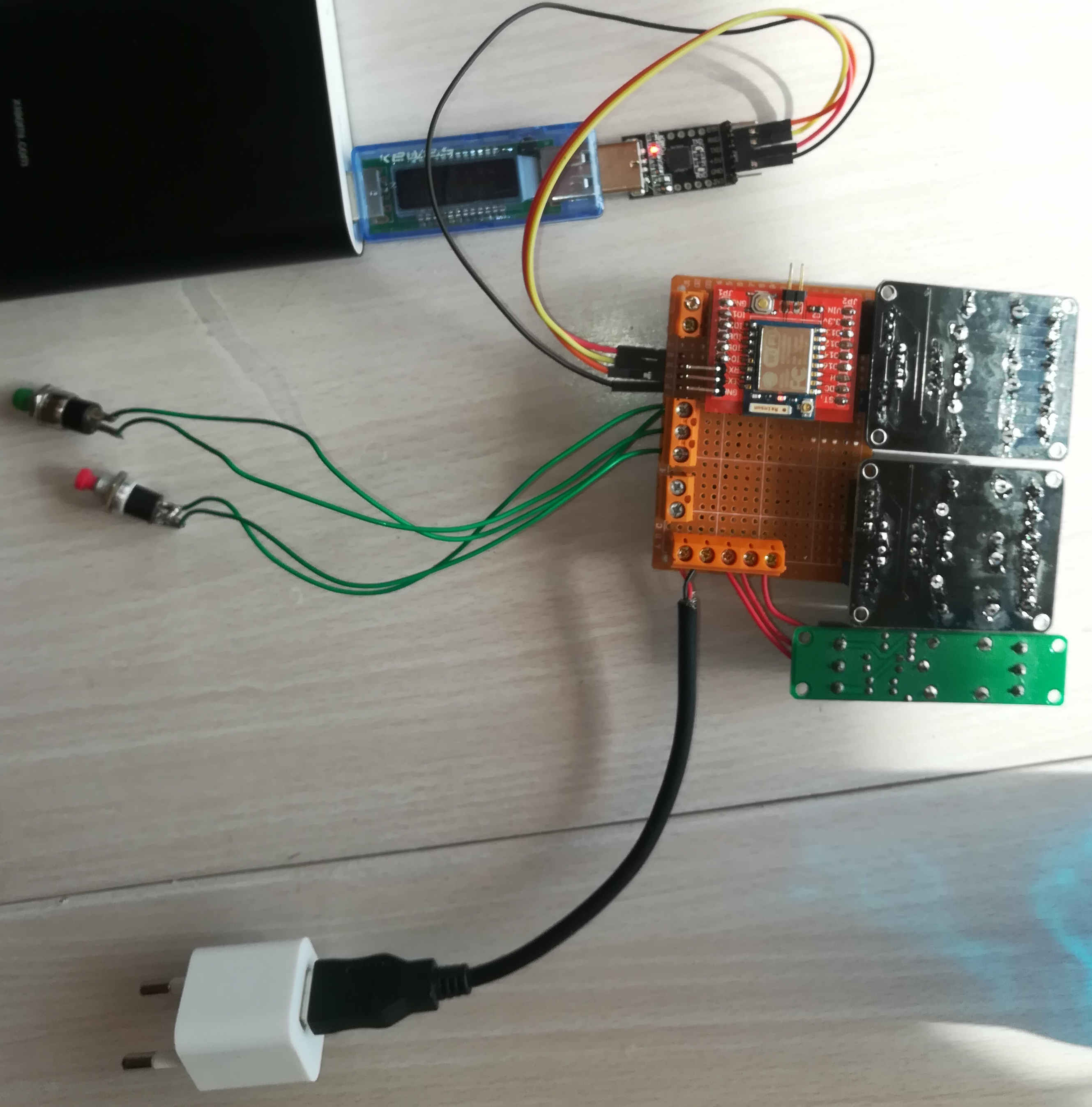

Application carte pour automatisme porte de garage

Programme pour porte garage

Blink_udp_8266_Bvdp.ino

//B. Vandeportaele 2018

//The blue LED on the ESP-01 module is connected to GPIO1
//(which is also the TXD pin; so we cannot use Serial.print() at the same time)

#define RELAY_OPEN 14
#define RELAY_CLOSE 12
#define RELAY_LIGHT 16

//inputs connected to button that connect the input to GND when pressed
//pin 5 erroneously numbered 4 on the PCB
#define BUTTON_OPEN 5
#define BUTTON_CLOSE 13

//pin 4 erroneously numbered 5 on the PCB
#define LASER_SENSOR 4
//The laser and the sensor can both work at 3.3V. The output of the sensor is at logic high level when it does not receive enough light
//disconnect from the sensor and connect this pin to GND to disable the laser barrier security

#include <ESP8266WiFi.h>
#include <WiFiClient.h>
#include <WiFiUdp.h>
WiFiUDP Client;

// A UDP instance to let us send and receive packets over UDP
WiFiUDP udp;
// wifi connection variables
#include "wifidata.h"
//These values are set in "wifidata.h"
//unsigned int localPort = -----------; // local port to listen for UDP packets
//const char* ssid = "----------------";
//const char* password = "---------------------";

#ifdef TRANSMITOVERWIFI
String ip = "192.168.1.9"; // the remote IP address
IPAddress Ip;
#endif


//  /home/bvandepo/.arduino15/packages/esp8266/hardware/esp8266/2.3.0-rc2/libraries/ESP8266WiFi/src/ESP8266WiFi.h
//  /home/bvandepo/.arduino15/packages/esp8266/hardware/esp8266/2.3.0-rc2/cores/esp8266/IPAddress.h

//////////////////////////////////////////
void Debug(char * msg)
{
#if 1
    Serial.print(msg);
#endif
}
//////////////////////////////////////////
unsigned long computeDeltaTime(unsigned long  time_begin){
    unsigned long time_current;
    unsigned long time_delta;
    time_current=micros();
    if (time_current>time_begin)
        time_delta=time_current-time_begin;
    else //in case micros has rolled over 2^32, may happen approx. once each hour (3600000000us)
        time_delta=time_current-(time_begin-(unsigned long )4294967296);
    return time_delta;
}
//////////////////////////////////////////
#define INACTIVE 0
#define SHORT_PRESS_DURATION_MIN_US 500000
#define SHORT_PRESS_DURATION_MAX_US 1000000
#define SHORT_PRESS 1
#define LONG_PRESS_DURATION_MIN_US 1500000
#define LONG_PRESS_DURATION_MAX_US 2000000
#define LONG_PRESS 2
//longer than LONG_PRESS_DURATION_MAX_US
#define CONTINUOUS_LONG_PRESS 3
#define PRESSED 4
#define STOP_CONTINUOUS_LONG_PRESS 5
//////////////////////////////////////////
class Button{
public:
    ////////////
    int fsm_state;
    int active_state;
    int pin;
    char *name;
    unsigned long time_begin;
    unsigned long duration; //for the current action
    ////////////
    Button(int pin_init,char * name_init, int active_state_init){
        pin=pin_init;
        name=name_init;
        active_state=active_state_init;
        if (active_state==0)
            pinMode(pin, INPUT_PULLUP);
        else
            pinMode(pin, INPUT); //_PULLDOWN not available, the pull down has to be attached physically to the pin
        fsm_state=INACTIVE; //TODO manage the case when the button is already active at startup....
    }
    ////////////
    void loop(){
        unsigned long time_delta=computeDeltaTime(time_begin);
        switch(fsm_state){
        case CONTINUOUS_LONG_PRESS:
            Debug("Button ");       Debug(name);      Debug(" is CONTINUOUS_LONG_PRESS        ");
            if (digitalRead(pin)!=active_state)  {
                fsm_state=STOP_CONTINUOUS_LONG_PRESS;
            }
            break;
        case PRESSED:
            Debug("Button ");       Debug(name);      Debug(" is PRESSED                      ");
            //check if the button is being realeassed
            if (digitalRead(pin)!=active_state)  {
                if (time_delta<SHORT_PRESS_DURATION_MIN_US)
                    fsm_state=INACTIVE; //may be a parasite pulse
                else if ( (time_delta>=SHORT_PRESS_DURATION_MIN_US) && (time_delta<=SHORT_PRESS_DURATION_MAX_US))
                    fsm_state=SHORT_PRESS;
                else if ( (time_delta>=LONG_PRESS_DURATION_MIN_US) && (time_delta<=LONG_PRESS_DURATION_MAX_US))
                    fsm_state=LONG_PRESS;
                //else  longer... the realesed is treated in fsm_state=CONTINUOUS_LONG_PRESS
            }
            else if (time_delta>LONG_PRESS_DURATION_MAX_US)
                fsm_state=CONTINUOUS_LONG_PRESS;
            break;
        case SHORT_PRESS:
            Debug("Button ");       Debug(name);      Debug(" is SHORT_PRESS  ");
            break;
        case LONG_PRESS:
            Debug("Button ");       Debug(name);      Debug(" is LONG_PRESS                   ");
            break;
        case STOP_CONTINUOUS_LONG_PRESS:
            Debug("Button ");       Debug(name);      Debug(" is STOP_CONTINUOUS_LONG_PRESS   ");
            break;
        case INACTIVE:
        default:
            Debug("Button ");       Debug(name);      Debug(" is INACTIVE                     ");
            //check if the button is being pressed
            if (digitalRead(pin)==active_state) {
                fsm_state=PRESSED;
                time_begin=micros();
            }
            break;
        }
    }
    ////////////
    bool isPressed(){
        return  (fsm_state==PRESSED);
        //this does not indicate that the button is currently pressed but that the fsm is in the pressed state. The button can be pressed and
        //the fsm be in one of these states:  || (fsm_state==CONTINUOUS_LONG_PRESS) || (fsm_state==SHORT_PRESS) || (fsm_state==LONG_PRESS) );
    }
    ////////////
    bool isShortPressed(){
        if (fsm_state==SHORT_PRESS){
            fsm_state=INACTIVE;
            return true;
        }else
            return false;
    }
    ////////////
    bool isLongPressed(){
        if (fsm_state==LONG_PRESS){
            fsm_state=INACTIVE;
            return true;
        }else
            return false;
    }
    ////////////
    bool isContinuousLongPressed(){
        return (fsm_state==CONTINUOUS_LONG_PRESS ); //don't change the state of the button
    }
    ////////////
    bool isStoppedContinuousLongPressed(){
        if (fsm_state==STOP_CONTINUOUS_LONG_PRESS){
            fsm_state=INACTIVE;
            return true;
        }else
            return false;
    }
};
//////////////////////////////////////////
Button buttonOpen(BUTTON_OPEN,"BUTTON_OPEN",0);
Button buttonClose(BUTTON_CLOSE,"BUTTON_CLOSE",0);
//////////////////////////////////////////
class SimpleInput{
public:
    ////////////
    int pin;
    char *name;
    int active_state;
    ////////////
    SimpleInput(int pin_init,char * name_init, int active_state_init){
        pin=pin_init;
        name=name_init;
        active_state=active_state_init;
        if (active_state==0)
            pinMode(pin, INPUT_PULLUP);
        else
            pinMode(pin, INPUT); //_PULLDOWN not available, the pull down has to be attached physically to the pin
    }
    ////////////
    bool isActive(){
        Debug(name);
        if (digitalRead(pin)==active_state)  {
            Debug(" input is ACTIVE\n");
            return true;
        }else{
            Debug(" input is INACTIVE\n");
            return false;
        }
    }
    ////////////
};
//////////////////////////////////////////
SimpleInput laserSensor(LASER_SENSOR,"LASER_SENSOR",0);
//////////////////////////////////////////
#define RELAY_LIGHT_OFF 1
#define RELAY_LIGHT_ON  0

#define DURATION_LIGHT_PULSE 500000
class LightPulseSwitch{
public:
    ////////////
    int pin;
    int state;
    unsigned long time_begin;
    ////////////
    LightPulseSwitch(int pin_init){
        pin=pin_init;
        digitalWrite(pin,RELAY_LIGHT_OFF);
        pinMode(pin, OUTPUT);
        state=RELAY_LIGHT_OFF;
    }
    ////////////
    void commute(){
        if (state==RELAY_LIGHT_OFF){
            Debug("commute RELAY_LIGHT_ON");
            time_begin=micros();
            state=RELAY_LIGHT_ON;
            digitalWrite(pin,RELAY_LIGHT_ON);
        }
    }
    ////////////
    void loop(){
        if (state==RELAY_LIGHT_ON){
            unsigned long time_delta=computeDeltaTime(time_begin);
            if (time_delta>=DURATION_LIGHT_PULSE)  {
                Debug("commute RELAY_LIGHT_OFF");
                state=RELAY_LIGHT_OFF;
                digitalWrite(pin,RELAY_LIGHT_OFF);
            }
        }
    }
};
//////////////////////////////////////////
LightPulseSwitch light(RELAY_LIGHT);
//////////////////////////////////////////
#define WAITING 0
#define OPENING 1
#define CLOSING 2
#define OPENED 3
#define CLOSED 4

#define DURATION_OPEN_US 60000000
#define DURATION_CLOSE_US DURATION_OPEN_US
#define DURATION_OPEN_SMALL_US 20000000
#define DURATION_CLOSE_SMALL_US (DURATION_CLOSE_US-DURATION_OPEN_SMALL_US)
#define RELAY_DOOR_OFF 1
#define RELAY_DOOR_ON  0

class Door{
public:
    ////////////
    int pin_open;
    int pin_close;
    unsigned long time_begin;
    unsigned long duration; //for the current action
    int fsm_state;
    ////////////
    Door( int pin_open_init, int pin_close_init)  {
        pin_open= pin_open_init;
        pin_close=pin_close_init;
        digitalWrite(pin_open,RELAY_DOOR_OFF);
        digitalWrite(pin_close,RELAY_DOOR_OFF);
        pinMode(pin_open, OUTPUT);
        pinMode(pin_close, OUTPUT);
        fsm_state=WAITING;
    }
    ////////////
    bool isOpening(){
        return (fsm_state==OPENING);
    }
    ////////////
    bool isClosing(){
        return (fsm_state==CLOSING);
    }
    ////////////
    bool isMoving(){
        return ( (fsm_state==OPENING) || (fsm_state==CLOSING));
    }
    ////////////
    void open(long int duration_init){
        Debug("open\n");
        time_begin=micros();
        duration=duration_init;
        fsm_state=OPENING;
        digitalWrite(pin_close,RELAY_DOOR_OFF);
        delay(100); //let time for the first relay to switch off
        digitalWrite(pin_open, RELAY_DOOR_ON);
    }
    ////////////
    void close(long int duration_init){
        Debug("close\n");
        time_begin=micros();
        duration=duration_init;
        fsm_state=CLOSING;
        digitalWrite(pin_open, RELAY_DOOR_OFF);
        delay(100); //let time for the first relay to switch off
        digitalWrite(pin_close,RELAY_DOOR_ON);
    }
    ////////////
    void pause(){
        Debug("pause\n");
        time_begin=micros();
        fsm_state=WAITING;
        digitalWrite(pin_open, RELAY_DOOR_OFF);
        digitalWrite(pin_close,RELAY_DOOR_OFF);
    }
    ////////////
    void loop(){
        unsigned long time_delta=computeDeltaTime(time_begin);
        switch (fsm_state){
        case OPENED:
        case CLOSED:
        case WAITING:
        default:
            Debug("waiting\n");
            digitalWrite(pin_open, RELAY_DOOR_OFF);
            digitalWrite(pin_close,RELAY_DOOR_OFF);
            break;
        case CLOSING:
            if (time_delta<duration) {
                Debug("closing");
                char msg[15];
                snprintf(msg,14," %d / %d s\n",time_delta/1000000,duration/1000000);
                Debug(msg);
            }
            else {
                Debug("closed\n");
                fsm_state=CLOSED;
            }
            break;
        case OPENING:
            if (time_delta<duration)  {
                Debug("opening");
                char msg[15];
                snprintf(msg,14," %d / %d s\n",time_delta/1000000,duration/1000000);
                Debug(msg);
            }
            else  {
                Debug("opened\n");
                fsm_state=OPENED;
            }
            break;
        }
    }
    ////////////
};
//////////////////////////////////////////
Door door(RELAY_OPEN,RELAY_CLOSE);
//////////////////////////////////////////
#ifdef TRANSMITOVERWIFI
void sendMessage(byte message[]) {
    //sprintf((char*)message,"Hello ca va la?");
    udp.beginPacket(Ip, 10000);
    udp.write(message, strlen((char*)message));
    udp.endPacket();
}
#endif
//////////////////////////////////////////
int getMessage(byte message[], int maxByte){
    int cb = udp.parsePacket();
    if (cb==0) return 0; //no dataavailable, quit
    if (cb>maxByte) cb=maxByte; //don't overrun the buffer, the remaining part of the message WILL BE LOST!!
    // We've received a packet, read the data from it
    udp.read(message, cb); // read the packet into the buffer
    message[cb]=0; //add a 0 after the content in the buffer
    return cb;
}
//////////////////////////////////////////
#define BUFFER_RX_MAX 100
#define ERROR -1
#define NOTHING 0
#define OPENTHEDOOR 1
#define CLOSETHEDOOR 2
#define STOPTHEDOOR 3
#define SWITCHTHELIGHT 4
#define STARTING 5
#define WAITINGFORCONNECTION 6
#define CONNECTED 7

class Communication{
public:
    int state; //last message received
    byte message[BUFFER_RX_MAX+1]; //+1 to add an additional 0 after the received bytes to ensure that the string is correctly finished, even if the sender sent some errors
    ////////////
    Communication()  {
        state=STARTING;
    }
    ////////////
    void loop(){
        //doc at https://www.arduino.cc/en/Reference/WiFiStatus
        if (state==STARTING){
            //Wifi Configuration
            Serial.println ( "Wifi Configuration" );
#ifdef TRANSMITOVERWIFI
            Ip.fromString(ip);
#endif
            WiFi.begin ( ssid, password );
            // Wait for connection
            state=WAITINGFORCONNECTION;
        } else if (state==WAITINGFORCONNECTION){
            if ( WiFi.status() != WL_CONNECTED ) {
                Serial.print ( "WAITINGFORCONNECTION\n" );
            }else{
                state=CONNECTED;
            }
        } else if (state==CONNECTED){
            Serial.println ( "" );
            Serial.print ( "Connected to " );
            Serial.println ( ssid );
            Serial.print ( "Local IP address: " );
            Serial.println ( WiFi.localIP() );
            Serial.println("Starting UDP socket");
            udp.begin(localPort);
            Serial.print("Local port: ");
            Serial.println(udp.localPort());
            state=NOTHING;
        }
        else{
            if ( WiFi.status()==WL_CONNECTION_LOST){
                Serial.print ( "WL_CONNECTION_LOST\n" );
                state=STARTING;
            } else if ( WiFi.status()==WL_DISCONNECTED){
                Serial.print ( "WL_DISCONNECTED\n" );
                state=STARTING;
            } else{

                int n=getMessage(message, BUFFER_RX_MAX);
                if (n==0)
                    Debug(".");
                else{
                    Debug("packet received, length=");
                    char msg[11];
                    snprintf(msg,10,"%d",n);
                    Debug(msg);
                    Debug(", content= ");
                    Debug((char*)message);
                    if (strcmp((char*)message,"OpenTheDoorCompletelyPlease")==0){
                        state=OPENTHEDOOR;
                        Debug(" -> Open The Door\n");
                    }
                    else if (strcmp((char*)message,"CloseTheDoorCompletelyPlease")==0){
                        state=CLOSETHEDOOR;
                        Debug(" -> Close The Door\n");
                    }
                    else if (strcmp((char*)message,"StopTheDoor")==0){
                        state=STOPTHEDOOR;
                        Debug(" -> StopTheDoor\n");
                    }
                    else if (strcmp((char*)message,"SwitchTheLight")==0){
                        state=SWITCHTHELIGHT;
                        Debug(" -> SwitchTheLight\n");
                    }
                    else{
                        state=ERROR;
                        Debug(" -> Error\n");
                    }
                }
            }
        }
    }
    ////////////
    bool isOpenTheDoor(){
        if (state==OPENTHEDOOR){
            state=NOTHING;
            return true;
        }else
            return false;
    }
    ////////////
    bool isCloseTheDoor(){
        if (state==CLOSETHEDOOR){
            state=NOTHING;
            return true;
        }else
            return false;
    }
    ////////////
    bool isStopTheDoor(){
        if (state==STOPTHEDOOR){
            state=NOTHING;
            return true;
        }else
            return false;
    }
    ////////////
    bool isSwitchTheLight(){
        if (state==SWITCHTHELIGHT){
            state=NOTHING;
            return true;
        }else
            return false;
    }
    ////////////
    bool isError(){
        if (state==ERROR){
            state=NOTHING;
            return true;
        }else
            return false;
    }
    ////////////
};
//////////////////////////////////////////
Communication communication;
//////////////////////////////////////////
//Be carefull, The Watchdog resets every 4 seconds if the loop function is not finished
//////////////////////////////////////////
void test_buttons_and_relays()
{
    int b_o,b_c;
    Serial.print( "test_buttons_and_relays(): " );
    b_o=digitalRead(BUTTON_OPEN);
    b_c=digitalRead(BUTTON_CLOSE);
    digitalWrite(RELAY_OPEN, b_o);
    digitalWrite(RELAY_CLOSE,b_c);
    Serial.print( "b_o: " );
    Serial.print(b_o);
    Serial.print( ", b_c: " );
    Serial.println(b_c);
    delay(100);
}
//////////////////////////////////////////
void setup() {
    //serial communication setup for debugging
    Serial.begin ( 115200 );
    delay(100);
    Serial.println ( "Serial Configuration Completed" );
    Serial.println( "Compiled: " __DATE__ ", " __TIME__ ", " __VERSION__);
    //GPIOs Configuration
    Serial.println ( "GPIOs Configuration (some already done through constructors)" );
    //Wifi Configuration done in first iterations of communication.loop
};
//////////////////////////////////////////
// the loop function runs over and over again forever
void loop() {
    //Serial.println(micros());
    //test_buttons_and_relays();

    //FSM Loops for buttons and communication have to be executed before using the state
    buttonOpen.loop();
    buttonClose.loop();

    communication.loop();

    if (laserSensor.isActive()){
        if( buttonOpen.isShortPressed())
            door.open(DURATION_OPEN_SMALL_US);
        if( buttonOpen.isLongPressed() || communication.isOpenTheDoor())
            door.open(DURATION_OPEN_US);
        if( buttonOpen.isContinuousLongPressed())
            door.open(DURATION_OPEN_US);
        if( buttonClose.isShortPressed())
            door.close(DURATION_CLOSE_SMALL_US);
        if( buttonClose.isLongPressed() || communication.isCloseTheDoor())
            door.close(DURATION_CLOSE_US);
        if( buttonClose.isContinuousLongPressed())
            door.close(DURATION_CLOSE_US);
    }
    else {
        //stop the door, there is an obstacle
        door.pause();
        //remove pending commands from buttons and communication to avoid unwanted starting when the laser sensor will be active again
        buttonOpen.isShortPressed();
        buttonOpen.isLongPressed();
        communication.isOpenTheDoor();
        buttonOpen.isContinuousLongPressed();
        buttonClose.isShortPressed();
        buttonClose.isLongPressed();
        communication.isCloseTheDoor();
        buttonClose.isContinuousLongPressed();
        Debug("Laser Barrier Sensor has detected an obstacle, the door is stopped\n");
    }

    if( buttonClose.isStoppedContinuousLongPressed() || buttonOpen.isStoppedContinuousLongPressed() || communication.isStopTheDoor())
        door.pause();

    if ( (door.isClosing() && buttonOpen.isPressed()) || (door.isOpening() && buttonClose.isPressed())  )
        door.pause();

    if (communication.isSwitchTheLight())
        light.commute();

    door.loop();
    light.loop();

    delay(100); //for debuging purposes, it slows the display

}
//////////////////////////////////////////

télécommande voiture pour marc

https://www.hackster.io/bryan_in_france/control-your-rc-car-with-your-android-tablet-acfe04

Carte marc Arduino D1 Mini

https://www.electro-info.ovh/premiers-pas-avec-arduino-d1-mini

https://www.aranacorp.com/fr/vue-densemble-du-microcontroleur-wemos-d1-mini/

Problème suite à upload

https://projetasgarddiy.fr/2018/05/31/flasher-wemos-d1-mini-avec-espeasy-mega/

https://projetasgarddiy.fr/2018/05/30/flasher-un-esp8266-nodemcu-avec-espeasy/

https://espeasy.readthedocs.io/en/latest/Reference/Flashing.html

sur cette page , ils parlent d'un fichier blank_4MB.bin a flasher pour remettre la carte en config initiale : https://letscontrolit.com/forum/viewtopic.php?p=57436

pour réparer: https://groups.google.com/g/openevse/c/yJ_PiVTAppo?pli=1

Table des matières

Installation sur Arduino

Informations générales sur les modules ESP8266

Utilisation comme modem

Utilisation comme carte microcontroleur

carte nodemcu

alimentation carte node mcu

module ESP 01

Brochage du module E12

Carte format uno R3

controle via wifi

monitoring batteries

télécommande
